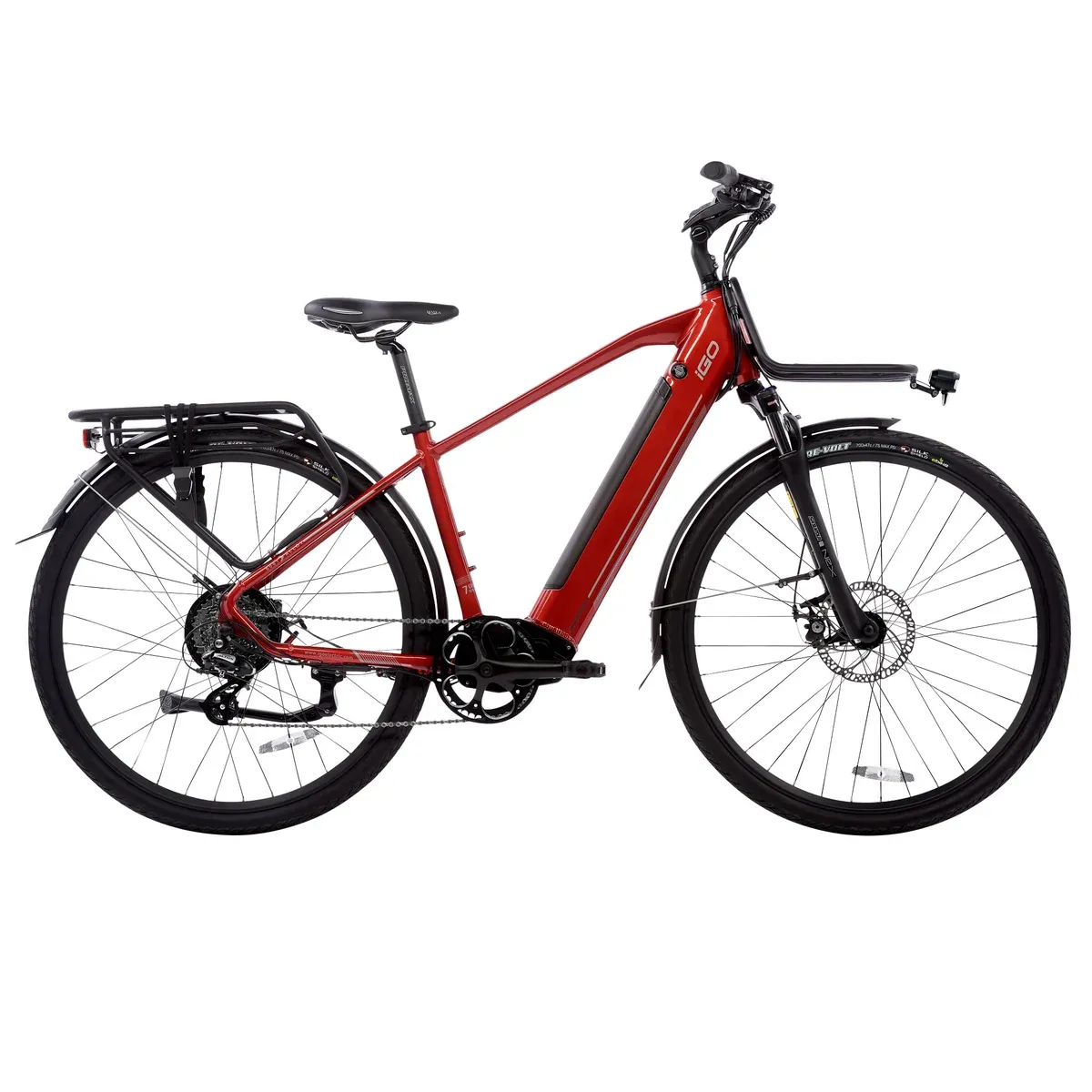

iGO Electric Bike Core Elite 3D HD COLOR Race Red/Silver

OPEN BOX

Features:

• SHIMANO rapidfire 8-speed shifter
• Motor 500W
• Battery Lithium-Ion
• Range 90 km (56 mi)
•



  About Assist and Throttle

  The 9 Levels of pedal assistance (PAS) are easily controlled from the ergonomic sensor pad interface integrated into the multifunction display. The ‘on demand’ thumb throttle can be engaged at any time to provide a power boost without the need to pedal. Both sets of controls are located conveniently on the handlebar for easy access at all times while hands stay securely placed on the grips.Pedal assist and throttle controls are sized and spaced to provide maximum accessibility and comfort.In addition to ‘powered’ modes the bike can be ridden as a ‘traditional’ bike by selecting ‘0’ PAS. In this mode the battery will only provide power to the lights and multifunction display allowing you to ride fully under your own steam whenever you desire.





  The Multifunction Display

  The LCD backlit display located on the handlebar acts as your ‘in ride’ dashboard, providing all the essential information about your speed and bike performance as well as light controls and diagnostic information for the bikes electronic components.
  The Elite 3D HD display has an integrated USB charging port that can be used to conveniently charge electrical devices such as a mobile phone.Display features:Speedometer / Max Speed / Average Speed / Odometer / Trip Timer / Diagnostic / Light Switch

  The Battery and Motor

  The motor has been configured to perform at the highest level legally permitted on Canadian roads. The geared brushless motor system is exceptionally efficient and smooth - maximizing power transfer and minimize power loss.Power is provided by a 576Wh battery that is seamlessly integrated within the natural shape of the bike frame. The battery locks securely into the bike and is simply removable using the keys provided; no special or additional tools required. For your convenience, the battery can be charged on or off the bike.





  SHIMANO Components

  Using only the most reputable brands in the business is essential to ensure the optimal ride quality of each iGO bike. The SHIMANO ALTUS rapidfire 8-speed trigger shifting system offers exceptional performance with steadfast stress free shifting every time. Combining SHIMANO’s technical expertise with an innovative Narrow Wide chainring delivers the most reliable, error free performance possible.





  About the Narrow Wide Chainring

  The Narrow Wide chainring has alternating teeth thickness. These correspond precisely to the ‘inner’ and ‘outer’ links of the chain and greatly reduce any sideways movement of the chain when riding. This is important when traveling at speed over rugged ground or when changing gear as this innovative technology keeps the chain securely in place and minimizing the occurrence of chain drop.

  Premium Quality Tires and Hydraulic Brakes Delivering Safety and Control

  MAXXIS are renowned for delivering some of the most durable tires available. The MAXXIS Re-Volt tires have been specifically designed for electric bikes and also offer advances silk shield puncture protection.To ensure rider safety the iGO Elite 3D HD has advanced stopping power with TEKTRO hydraulic bakes and extra large 180mm disc brake rotors (front and rear). Disc brakes are essential on electric bikes to provide the traction required to slow the bike with ease when traveling at high speed. The TEKTRO hydraulic disc brakes retain their excellent performance even in wet or muddy conditions.










  The high intensity front LED light.Attach the light to the bracket on the flat-bed front rack for a solid forward facing wide beam.



  The large flatbed front rack, included with the Elite 3D HD, can be attached to the front of the bike using the high strength 4 bolt mount system. This sturdy and durable alloy rack is perfect for holding luggage, daypacks, baskets, and many other cargo options which can be secured easily to the open grid welded metal structure.



  The heavy duty rear cargo rack is exceptionally versatile with multiple bars and brackets to provide various mounting options and ensure the rack is compatible with most commercially available pannier systems. A bungee cord is also provided to ensure any loose cargo items can be secured quickly and easily.The light bracket on the rack ensures the rear light is in clear view and unobstructed at all times for your safety.

  Technical Specifications

  Collapse group heading FRAMESET
  FRAME	Hydroformed 6061 Aluminum hybrid ERGOFIT frame with smooth welds. Fender/rack mounts, internal cable routing, Electronic Access Port. Removable integrated battery with security lock.
  COLOR	Race Red/Silver
  FORK	SUNTOUR NEX eBike rated suspension with lockout
  Collapse group heading DRIVETRAIN
  SHIFTERS	SHIMANO 8-speed Rapidfire shift
  CHAINRINGS	42T
  CHAIN	KMC X8 EPT
  REAR DERAILLEUR	SHIMANO ALTUS 8-speed
  CASSETTE	8-speed 11-34T
  Collapse group heading COMPONENTS
  HANDLEBAR	Alloy ERGOFIT riser touring bar
  GRIPS	VELO ergonomic grip
  STEM	PROMAX toolless adjustable threadless
  SEAT POST	Alloy 30.4mm with quick release (350mm)
  SADDLE	SELLE ROYAL Nuvola - black
  BRAKE LEVERS	TEKTRO HD-E350
  BRAKE CALIPERS	TEKTRO hydraulic disc
  ROTORS	180mm
  Collapse group heading WHEELS
  TIRES	MAXXIS Overdrive 700x47C, 28"x1.75" with SilkShield bead-to-bead puncture protection, reflective strip
  RIMS	iGO 700C dual wall alloy
  Collapse group heading ELECTRIC TECHNOLOGY
  DISPLAY UNIT	LCD Backlit, Main Power, USB Charging Port, Diagnostic, Battery Status, Light Switch, Pedal Assist Level Selector, Walk Assist Control, Speedometer, Max Speed, Avg Speed, Odometer, Trip Timer
  MOTOR	500W geared brushless hi-torque rear hub motor
  TORQUE	up to 48Nm
  CONTROLLER	48V, 18A
  BATTERY TYPE	3000mAh Cell Lithium-Ion removable battery
  BATTERY VOLTAGE (V)	48V
  BATTERY (Ah)	12Ah
  BATTERY CAPACITY (Wh)	576
  RANGE	90km (56mi) *
  POWER ASSIST	9 Levels of power assisted pedalling
  THROTTLE	Any time on demand thumb throttle
  SENSOR	Electronic 32 pulse Cadence Sensor integrated into the bottom bracket
  CLASS	Class2**
  BATTERY CHARGER	110/220V Smart charger, LED status, CUL, 2A
  Collapse group heading ACCESSORIES
  INCLUDED	Front & Rear LED Lights (powered by main battery)Front Rack Mount for LightFront & Rear Cargo RackFront & Rear FendersRear Bungee StrapsChainring GuardWater Bottle Boss on Seat TubeKickstandWellgo PedalsTool KitBattery Pin ProtectorBattery Charger
  Collapse group heading NOTES
  BIKE WEIGHT	23.7kg (52.2 lbs)
  BATTERY WEIGHT	3.3kg (7.3 lbs)
  WEIGHT CAPACITY	100 kg (220 lbs)
  BIKE DIMENSIONS (L x W x H)	185.4 x 70 x 112 cm (73 x 27.6 x 44 in)
  	Battery can be charged on or off the bikeBattery charging time 4 to 6 hoursBOX DIMENSIONS (LxWxH)170 x 25 x 89 cm (66.9 x 9.8 x 35 in)BOX WEIGHTGross 38 kg (83 lb), Net 27 kg (59 lb)*Actual range may vary depending on Ah of battery rider weight and other riding conditions.**Electric bike class regulation:Class 1 - Pedal assist motor with maximum assisted speed 32km/h (20mph)Class 2 - Pedal assist motor and throttle with maximum assisted speed 32km/h (20mph)Class 3 - Throttle and/or pedal assist motor with maximum assisted speed 45km/h (28mph)all classes allow a maximum motor power of 750W(US) or 500W(Canada)This bike is sold factory configured to CLASS 2 specifications.Specifications & pricing subject to change.
  Collapse group heading GEOMETRY
  FRAME SIZE	44cm (17.5”) - accommodates a rider from 5’3” to over 6’2”
  SADDLE HEIGHT (MIN/MAX)	80cm / 100cm (31.5” / 39.5”)

  Optimal Rider Height



  3 Step Assembly



  Setup is simple with only three steps to complete once out of the box (assembly video available).

  Documents

  •

    FULL SPEC SHEET (EN)

    ViewFULL SPEC SHEET (EN) PDF | DownloadFULL SPEC SHEET (EN) PDF

    PDF, 1 MB
  •

    USER MANUAL (EN)

    ViewUSER MANUAL (EN) PDF | DownloadUSER MANUAL (EN) PDF

    PDF, 2 MB

  UL certified

  Gaining this distinction provides peace of mind that the electrical drive train system, battery system and charger system combinations of the iGO Elite 3D HD were fully tested by Underwriters Laboratory and have passed all their independent electrical and fire safety examinations to acquire the highest standard in electric bike accreditation.



  ENVIRONMENT



  A true zero emission vehicle with exceptionally low running costs.iGO are proud to present the Elite 3D HD as an affordable option to aid in the ongoing and essential transition to electric vehicles use in North America.Using vehicles that do not emit carbon by-products is one of the best ways to ensure a greener environment as they are an effective tool in the struggle to reduce the effects of global warming. Studies have shown switching to electric bikes can reduce our carbon footprint by up to 50%Major city hubs have a problem with air pollution. In addition to the environmental effect of the pollution this smog can lead to respiratory and other health issues. Increased electric bikes use in built up areas can greatly reduce smog.



  As part of the national ‘Call2Recycle’ program iGO are committed to ensuring responsible disposal and reclamation of eBike batteries to minimize waste, maximise repurposing of assets and reduce the environmental impact of the increasing battery demand in our society.
